Megatro 35kv 35b02-Z1 Sc Tangent and Transmission Iron Structure

  • Model NO.: MGP-35KV 35B02-Z1
  • Conductor Circuit: Single Circuit
  • Materials: Steel
  • Style: According to Client Requirements
  • We Can Design by Pls&Tower Software: According to Client Requirements
  • Accessories 2: Opgw and Conductor
  • Accessories 4: Lighting Rod and Earthing Wire
  • Accessories 6: Anchor Bolts and Templates
  • Accessories 8: Tower Foundation
  • Trademark: MEGATRO
  • Specification: AS PER CLIENT REQUIREMENTS
  • HS Code: 73082000
  • Usage: Crossing Tower, Tension Tower, Angle Tower, Terminal Tower, Transposition Tower, Branching Tower, 230kv DC and 500kv Sc Tangent Lattice Tower
  • Certification: ISO
  • Standard: Standard
  • Structure: as Per Client Requirements and Data
  • Accessories 1: Earth Wire
  • Accessories 3: Power Fitting and Insulator
  • Accessories 5: Aviation Light
  • Accessories 7: Cabel and Ground Wire
  • Accessories 9: Other Services as Per Clients
  • Transport Package: Export Standard Package
  • Origin: Shandong, China
MEGATRO 35KV 35B02-Z1 SC tangent and transmission iron structure
This photo refers to our 35KV 35B02-Z1 SC tangent and transmission iron structure, it is widely used in our Chinese market. Some of technical features of this tower as follow:
1 climate condition
Item Temperature (ºC) Wind speed (m/s) Ice thickness (mm)
Max. temperature 40 0 0
Mini. temperature -20 0 0
Ice thickness -5 10 10
Basic wind speed -5 27 0
Installation condition -10 10 0
Annual temperature 15 0 0
Lightning overvoltage 15 10 0
Operation overvoltage 15 16 0
2 Technical specification of conductor and OPGW

Item 		Conductor OPGW
LGJ-240/30 GJ-35

construction 		24/3.60 26/270
7/2.4 7/2.40 7/2.9

Cross-section
(mm2) 		Al 275.96 46.24
Steel 21.60 8.7
Total 0.9222 0.3671
Diameter 75620 58720
Length mass (kg/km) 0.0081
Elastic module (MPa) 73000 181420
coefficient of linear expansion (1/ºC) 19.6×10-6 11.5×10-6

3 tower design data
Nominal
Height 		12 15 18 21 24 27 30
tower weight Kg 2.5050 1007 1247 1512 1807 2050 2416
4 type and force of conductor and OPGW

Power
voltage
35KV
35B02-Z1
 		 Conductor
type 		LGJ-150/25 Max. operation
Tension force
(KN/phase)
20560
Un-balance
Stress value(%)
40
OPGW
Type 		GJ-35 Max. operation
Tension force
(KN/pc) 		13660

 		 Un-balance
Stress value(%)
50

5 Operation data

Item
 		 Horizontal
span
(m) 		Vertical
Span
(m) 		Representative
Span (m) 		Angle
º 		Height
(m)
KV

data 300 450 250 0 30 0.80
6 loading data

Site condition 		Normal operation condition Accident condition Installation
condition
Basic wind speed Ice Mini. temperature Non-broken broken
Climate condition
(t/v/b) 		-5/25/0 -5/10/10 -20/0/0 --/0/0 --/0/0 -10/10/0
Horizontal loading conductor 2941 1131
Insulator Power fitting
Jump & string
OPGW 1389 825
Vertical loading


 		 conductor 5190 8753   4808 4808 11441
Insulator Power fitting
Jump & string
OPGW 2630 4638   2497 2497 11440
Stress  force conductor One side         14366
The other side
Stress differences         14366
OPGW One side         9093
The other side
Stress differences         9093


7 Foundation distance size

Nominal
Height (m) 		Foundation distance (mm) Anchor bolt

  • Display: 21.5" TFT High Definition capacitive touch module (16:9)
  • Resolution: 1920*1080 pixels
  • Brightness: : 250 cd/squa
  • Contrast ratio: 1000:1
  • Input voltages: 110 to 240V AC
  • Output voltage: 12V DC
  • Response time: 6ms
  • Viewing angle: 170°/160°
  • Product size: 52*31.3*4.9cm
  • Shell material: Aluminium



  • Touch Panel: G+G
  • Surface hardness: 7H
  • Transparency: >90%±5%
  • Operating temperature: 0 to 50°C/20%-80%(non-condensing)
  • Humidity temperature: 0-85% at 40°C (non-condensing)
  • Storage temperature: -20 to 60°C/5-95%(non-condensing)
  • Storage humidity: 5%~95%
  • Connection Type: USB
  • Response time: <10ms
  • Operation voltage: 3.3V-3.6V DC
  • Max supported points : 10
  • System supported: Windows XP/7/8/10, Android and Linux

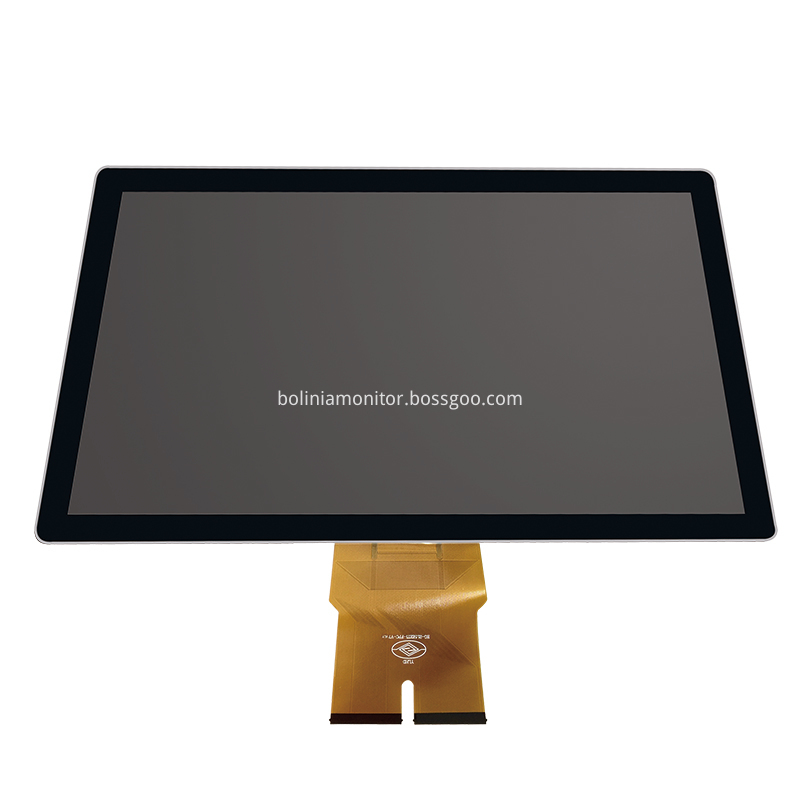

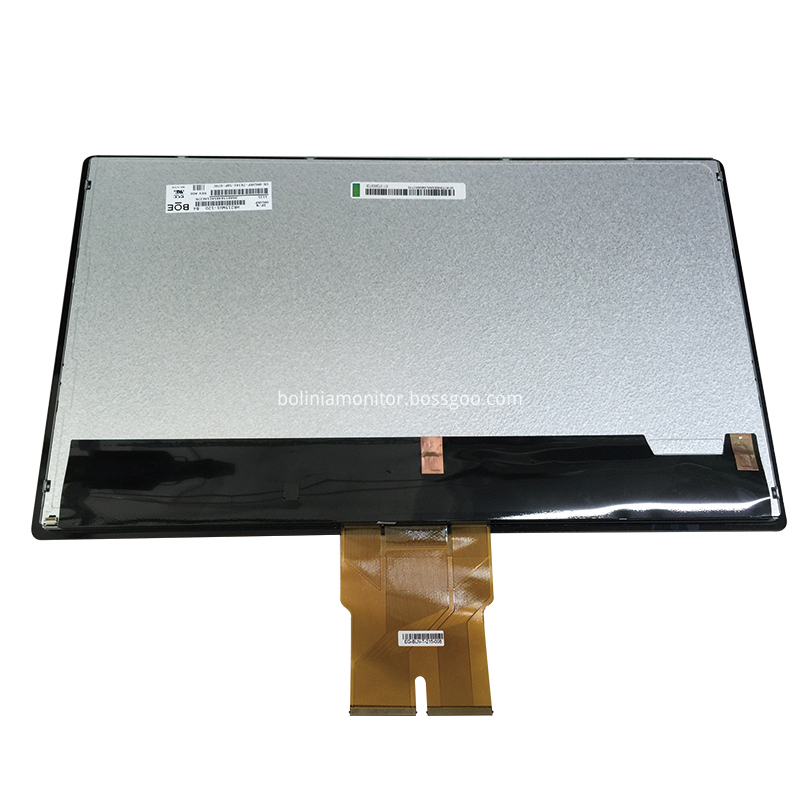

21.5 touch panel front21.5 touch panel back
