NAS is a good helper for external networks. The penetration of the internal network depends on it! —— Peanut shell peanut bar 2 generation experience
Hello everyone, I've come again.
This time it brings peanut stick out of the box and use of the second generation.
There must be a friend who will ask you what the peanut bar is. Can you eat it?
Haha, and the same idea that I first heard about this stuff, we can go to the official website of the peanut stick:
In fact, buying peanut bars is mainly to penetrate the internal network , because the home is the optical fiber network, then the cat, and the home group of Black Group NAS, can not connect to the external network. This is because the router address and NAS address are inconsistent.
Black group Hui. I get is less than 500 yuan of old computers made. Interested friends can see this original:
俺 Consulted some information, if you want the extranet to connect to the intranet NAS, it is said that the cat and the router can be bridged and dialed before they can, but also need public IP cloud. Anyway, it's very troublesome.
But inadvertently found such a gadget, peanuts. It can be penetrated by the intranet .
How do you understand this?
Everyone who knows the NAS knows it. Every time you log in to the NAS, it is usually an IP address. For example, 192.168.1.110. Then cooperate with the port number. For example: 5000 and so on. Can log in.
But if you want to visit outside the network. Then you need to enter the IP address. For example, 231.92.123.12. But we can't get this public network IP here.
But if you have a peanut stick. You can log in directly to the domain name shared by the peanut bar. For example hsbym.vicp.cc. This time, this domain name will jump to an IP address. Then the IP address is transferred to the IP address of your home network. It is equal to the input of this domain name, and it is connected with the peanut bar, and the peanut bar is then transmitted with your home network. Get access to intranet functionality.
Everyone can look at this introduction:
1, when buying, is to say that every Tuesday can buy 98 yuan, so he bought 98 yuan, issued Yuantong Express, the speed is not bad, 2 days to arrive:
2, open the outer packaging, there is a black box:
3, the back is the SN number of this peanut bar and some models and bar codes, this SN number needs to be well preserved:
4, open the box, there is a simple small description:
5, take out the instructions, there is a peanut bar looks like:
6. Family portrait: Data line 1. Peanut bar 1. Description 1. The power adapter needs to be purchased by itself:
7, smaller than a bottle of Mosslian:

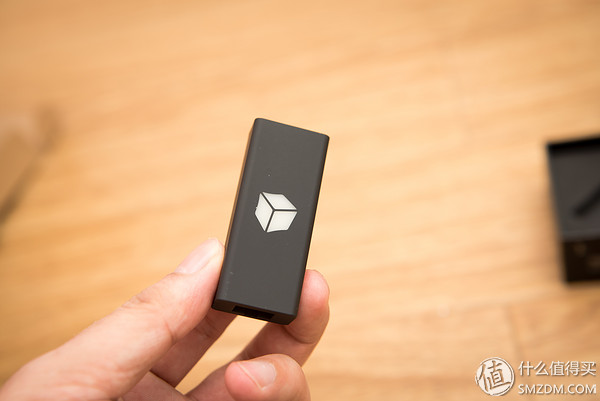

8, take the size of your hand:
9, the bottom is a network Cable socket:
10, behind the SN number:
11, the other side is a data line interface:
12, on the left is to buy a sunflower boot bar. The size is the same as this peanut bar:
Unpacking is complete!
Second, to connect peanut bars:1. There is a simple explanation next to the box:
Connect the power first:
2. Plug the Internet cable again:
3. Log in to the website b.oray.com via PC or mobile phone:
4, a cool word. . .
5, open the instructions: In fact, the description and the approximate meaning of the box is the same. correct. That power adapter needs its own preparation:
6, easy to complete three steps peanut bar configuration:
7, in fact, and the above description of the box is the same:
8. Connect the power supply and wait for it to turn green. You can go to the computer:

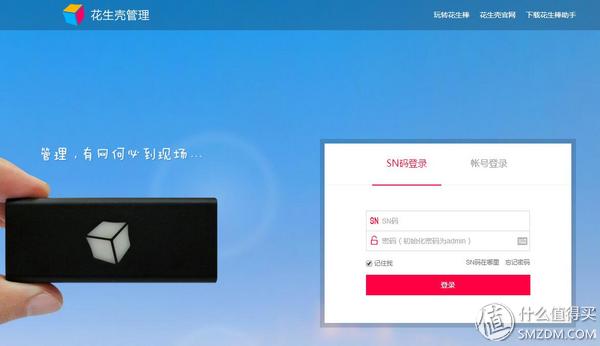

1. Login to the website b.oray.com to enter the peanut shell management interface. Enter the SN number behind the box. The default password is admin. Log in:
2, if the login fails. The device assistant can be downloaded for viewing:
3, you can also see some of the diagnostic services:
4, the assistant's name:
5. When logging in for the first time, you need to enter the password, mobile phone, and email to perform a simple binding:
6, after the success of the activation, sent a free domain name, then log in to this domain name, you can enter your own home network:
7, sent a red envelope above, point in and look down. There are 18 red envelopes. It is also necessary to buy some services, do not buy. .
8, into the peanut shell management interface, point on the inner network penetration.
9, to add mapping.
This is actually very simple, is to enter a name. Then the IP of the intranet host. For example, 192.168.1.112. Then port. Synology's port is generally 5000. Then just fine.
10, completed after the input is complete.
11. Log in to your domain name and see if you can enter:
Aha, the page can't be found. Why? . . ? ? ?
Why? ? ? ?
For this purpose, 2 peanut bars were reset. Baidu has a bunch of information. No result.
12, finally, I found. Haha. Not my setting is wrong. It is this thing. It will take more time to wait. For example, wait a few hours before logging in. You can log in.
13, direct input, domain name, you can enter their own intranet host. We must remember to wait a little longer.
I tried to ping this address:
14. The IP address is Hangzhou, Zhejiang. .
15. After the external network logs in, the displayed LAN is still the IP of the internal network. However, it is not the home network login. It is registered with extranet.
Tested on the phone, it is a bit slow and can also be controlled.
This time the writing will soon reach its tail. There are no special words to write. It is worthwhile to say that it seems that the speed is not very fast and it is very slow. However, if it can be used, it will be fine.
Follow-up on some digital-related fun things, I will share it to everyone, thank you!
