Since OTT box products have developed at explosive speed in 2014, until now, the hardware performance of the box is basically saturated. Boxes priced at less than 500 yuan can meet user requirements in terms of performance, quality output, etc. Therefore, the differential purchase starts. Passed to the "face value" competition, the various box manufacturers have begun to take the difference in the appearance of development. The visit to YORK's home appliance evaluation room is a triangular box that glitters with a cool metallic temperament - Mango Q H5.
Mango å—¨ Q H5 is Haimei Di's latest box product after the H6 box. If H6 is located in the voice control, H5 is the latest representative of the color value family. It can conquer you from the appearance, the following is the mango å—¨ Q H5 The hardware configuration:
What kind of experience will new products bring us? Let's take a look at the details below.
Unpacking accessories

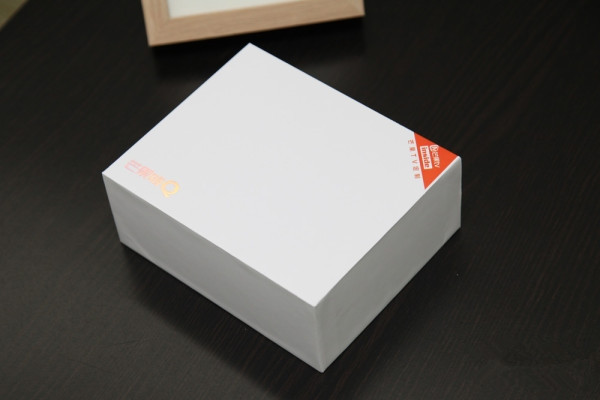

Mango Q H5 is extinguished in white extinction cartons. It is compact and lightweight. Only “Mango 嗨Q†is marked in the lower left corner and “Mango TV†is marked in the upper right corner. It is simple and generous. It can be seen that this new product is deeply customized by Haimeidi and Mango TV. product.
In the middle of the box, the “Haimeidi Smart TV Box†WeChat public number two-dimensional code is printed in the middle of the box. After the WeChat scanning, you can experience the latest news about the WeChat on-demand video, the WeChat remote, and the Haimeidi box official.
The internal stacking design is adopted. The mango Q5 H5 and user manuals, game cards, warranty cards, product certifications and other paper documents are placed on the upper layer. Other accessories are placed on the bottom and are placed separately to prevent the accessories and the host from being transported. Causes mutual collision and wear.
Containing the value of 128 yuan "My name is MT2 TV" game card, presented two heroes, for TV game lovers is a good news, have to say is that the game supports 4K resolution 3D run!
The bottom accessories include the power adapter, HDMI cable, and remote controller. The Mango Q5 H5 power supply uses a 5V/2A solution. It is energy-saving and environmentally friendly, and the input voltage is between 100-240V. It is commonly used at home and abroad, and it is equipped with an anti-interference coil. stable.
Mango Q H5 uses a standard remote controller, which is powered by dual-section No. 7 batteries. Buttons include a TV learning area, playback control area (volume increase/decrease, previous/next, pause/play, and 3D selection), functional areas, and Digital area, and a key switch button (including output, subtitles, audio track), in particular, the subtitle and audio track button to join, so that when watching the movie just press to switch selection.
Here is the family portrait:
overall appearance
As Hai Meidi’s “value†of this year's box, it has to be said that the mango Q H5 is indeed an ingenious piece that combines the two major features of metallic glory and mellow triangle, interpreting the exquisite design concept and placing it in the living room. Undoubtedly made a beautiful landscape.

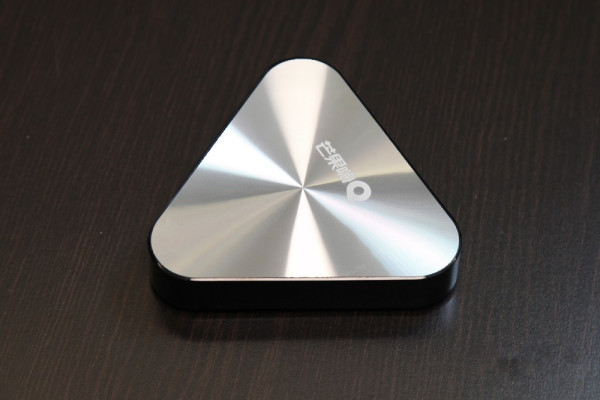

Mango å—¨ Q H5 abandoned the traditional "black brick" box design, the use of sleek triangle shape concept, the size ofmm, compact and lightweight, top silver, side and ground are cool black, the whole gives a deep sense of thick .
The cover is made of aviation-grade aluminum-magnesium alloy material. It is gradually concentric and artistic from the center of the panel. It is like a CD disk surface, and it reflects with the ambient light. Different angles of light can be seen in different refracted light, plus a metallic silver panel. Out of metal cool luxury.
The side and bottom are made of cool black PC plastic shells. After being rounded at the corners, it can prevent right angle scratches. The smooth design and furniture environment are more harmonious. The children's family need not worry.
Mango å—¨ Q H5 overall use no screw hole design, the author estimates that the screw hole hidden in the bottom of the three feet "bottom", because there is no screw hole design, making the overall look of the H5 design is more smooth, and the bottom and side suture A certain angle, a more three-dimensional sense.
Although the mango Q H5 is compact, but the interface is complete, all interfaces are on the "triangle" bottom, including AV output, HDMI 2.0 output, Fast LAN port, USB 2.0, reset button and DC 5V input, in addition Built-in WIFI antenna supports 2.4GHz 802.11b/g/n WIFI access. It is worth mentioning that the AV input is compatible with the old TV, and the standard HDMI version 2.0, transmission rate up to 18Gbps, support 10Bit color depth image lossless output, and supports 4K@60fps output, 4K@60fps us It can be understood as follows: 4K @ 30fps can perform perfectly for a normal movie, but for some fast-changing game screens, 4K @ 60fps will bring a smoother visual experience! Therefore, on the output, mango H5 is more avant-garde.
Hard and soft systems
Boot boot
I believe that for the first time the network set-top box is turned on, some common parameters such as resolution and network connection need to be set simply. Young people are fine, but for the elderly parents may appear to be somewhat "difficult", the first mango Q H5 There will be a power-on boot, which will guide the user through voice, screen zooming, and network settings. There will be a brief introduction to the system HiUI, even if the box white is easy to use.
System UI
The Mango QH5 software is equipped with a TV-based intelligent system based on Android 5.1 depth customization. The system interface uses the HiUI system independently researched and developed by Haimeidi to display online entertainment resources such as movies, games, and music. There are network types and weather in the upper right corner of the homepage. Status information such as events, etc. The upper part of the screen is a popular recommendation content of the film form in the form of a poster, which can be moved left and right to switch, the middle part of the custom application shortcut (can be customized to add, in accordance with the remote control menu key 3 seconds can be applied to the custom sorting ), the bottom part of the 5 functional entrance. The home page level design is simple, the logic is clear, the online resources of the box and local files can be managed from the home page, and both adults and children can easily master.
The bottom five functions of the entrance can be applied management, media center (local video decoding), playback records, video search, system settings. It is worth mentioning that the support of the media center function can decode and play the USB mobile storage and LAN media files. The LAN function supports both Samber and NFS protocols, which can automatically read the media files on the NAS server for decoding and playback. It is supported by the NFS protocol and solves the problem of transmission and downloading of large-stream files transmitted over a LAN (the NFS protocol is much more efficient than the Samber protocol).
In addition, the HiUI system also supports a one-touch set-up of nine numeric keys, allowing users to enter applications quickly by pressing the corresponding set number key.
Haimeidi Mango Q H5 box users can refer to the tutorial: Haimeidi box H5 installation method Install the sofa butler to expand third-party applications.
Hardware running points
Mango Que Q H5 system hardware configuration is equipped with the latest quad-core Rockchip RK3229 processor, 1GB memory and 8GB eMMC high-speed flash memory, this year's CES 2016 emerged. From the author's experience, the system and application run very smoothly, the following is the security Bunny Running with NenaMark2:
Online resources
Mango Que Q H5 is a box product jointly launched by Haimeidi, Mango TV and XiaoYang Games. It is positioned in the home entertainment field and has rich online resources in the fields of film and television, games and music.
Mango TV
In terms of film and television, it has one of the seven largest copyright holders, Mango TV, and is authorized to enjoy Hunan Satellite TV’s “Happy Camp†and “Every Dayâ€. It also has 24 hours uninterrupted mango rotation, followed by mango TV drama resources. The network is updated synchronously. The movie covers many resources such as 4K, Full HD, H.265, 3D, and Dolby Area, as well as channel classifications such as animation animation, finance, and sports. It is rich in resources and meets the family's viewing requirements.
Mango TV broadcast control interface provides the screen ratio, skip the beginning and end of the film, clarity and other parameters for the user to choose.
The latest "Magic Phantom" movie
Hot hit "Fantasy City" TV series
"Happy Camp" Variety
Children's favorite program "Pig Peggy"
Little y game
In terms of games, H5's built-in "Little y Game" platform is a collection of 4K video games that are very popular on the Internet, "My name is MT2 TV version". With the random distribution of 128 game cards, you can quickly enjoy the H5 home. 4K game screen. "Little y game" platform games are complete in categories, including handle games, casual games, remote control games, chess and mahjong, unlock zones, children's educational games, action fighting, large games, traffic jams, shooting games, sports games, adventure puzzles, etc. Role-playing, strategic management, resources are still very rich.
"Little y game" platform
TV 4K game "My name is MT2 TV"
QQ music
Nowadays, TVs purchased are generally “finished†in sound effects. Buying a high-end TV is equivalent to putting audio together and buying them home, so online music will undoubtedly become another important development area for living room entertainment. Mango Que Q H5 built-in QQ music player platform, brought together millions of genuine high-quality lossless music library, can watch high-definition MV online, listen to radio programs, and master the latest music information.
"QQ Music" broadcast control platform
Online HD MV
Online music player
Local decoding
Mango å—¨ Q H5 continues Haimeidi's advantage in decoding, fully exploits 10Bit HEVC and HDMI 2.0 decoding output performance of Rockchip RK3229 chip, supports 4K video hard output, hard H.265 support in video format, and supports 10 bit deep HEVC video decoding, support Blu-ray hard disk files (BDMV, BDISO video) simple navigation, full-format 3D (left and right 3D, up and down 3D, MVC 3D), in the system broadcast control support 1080P24Hz, external subtitle editing (external subtitles The size, color, position and other parameters), left and right 3D/up and down 3D to 2D playback.
4K H.265 test video: resolution 3840x2160, encoded H.265, stream 47540kbps, size 1.6GB, format MP4
It is worth mentioning that support for decoding and playback of 4K 10Bit HEVC videos is not yet widely available on the market. H5 is already equipped with this advanced decoding function, which is undoubtedly a lot of extra points. 10Bit color depth supports 1024 gray levels, hair color The number reaches 1.07 billion colors and the color transition is more natural. (Normal video is 8Bit color depth)
4K 10Bit HEVC test video, resolution 3840x2160, 50 fps, color depth 10Bit, color space YUV, stream 16.2 Mbps
There are more and more boxes on the market supporting Blu-ray decoding playback, but most of them only support BDISO, many BDMV still cannot support playback, and Blu-ray navigation is not supported. Mango Q H5 perfectly supports decoding playback of both formats, and Supports Blu-ray navigation support, and both Blu-ray formats support external subtitles (BDISO files only need to put subtitles in the same folder, BDMV files need to put subtitles in the BDMV folder), can be passed when playing Blu-ray movies The remote control's subtitle and track keys enable one-touch switching, which is very convenient.
Blu-ray Easy Navigation: Deadly Theft, Resolution 1080p, Blu-ray Disc Format (BDMV)
1080P24Hz native frame rate playback, restore movie film feel
One-touch switch subtitles prompt the current subtitles in the upper left corner of the screen (similar to a key switch audio track)
Second, the author through a number of conventional video mango Q H5 decoding test, in 31 test samples, 6 can not pass, passed is still quite good, the specific situation is as follows:
Special feature
As a bonus item for the network set-top box, feature features are undoubtedly an important factor in the differentiation of the box. What features are built into the Mango Q H5?
Super child lock
Super child lock is a function of mango Q H5 which is specially designed to limit children's long-time watching TV. It can lock the screen regularly and shut down regularly. The first time you need to initialize the password, you need to enter a 4-digit password each time you enter.
Self-start management
The operating memory of the box is 1GB. With the application installed, the startup of some applications will be started together to reduce the operating speed of the system. This function can effectively manage application startup and reduce system memory consumption.
Music broadcast screen
Mango Que Q H5 built-in music player screen for multi-screen interaction, supports wireless projection of Apple devices and Android devices, Apple device support can mirror images through Airplay protocol, Android devices need to install music player screen APP on the mobile phone side (Only Android5.1 system phones are supported). Keeping the mobile phone and the box in the same local area network can be used for screencast applications.
WIFI hotspot
It can act as a WIFI relay and relays wired network signals into WIFI signals.
General evaluation evaluation
Mango Q H5 is designed with "metal + triangle" in mind, hardware configuration Rockchip RK3229 + 1GB RAM + 8GB eMMC flash memory, the software system is powered by Google CTS certified Android 5.1 system, to bring more fun OTT box solution; continuation of the positioning of Haimedi in the decoding and positioning of the user's home living room entertainment center, Mango Q15 in the functional experience to fully cover the Blu-ray video decoding (4K hard solution output, hard solution H.265, 10Bit HEVC decoding) , online video (built-in mango TV broadcast control), games (small y games), music (QQ music), LAN sharing (support Samber, NFS protocol) and multi-screen interactive, child lock and other functional experience, to bring users more humane Human-computer interaction.
Design: ☆☆☆☆☆
Hardware configuration: ☆☆☆☆☆
System UI: ☆☆☆☆
Local decoding: ☆☆☆☆☆
Online resources: ☆☆☆☆☆
Features: ☆☆☆☆
In the hardware performance and functional experience has been gradually saturated to become the main OTT box market, mango å—¨ Q H5 high-value metal + sleek triangle design is undoubtedly a bright spot, if you look tired of the sales of the box on the market, may wish to H5 Take home.
